Description

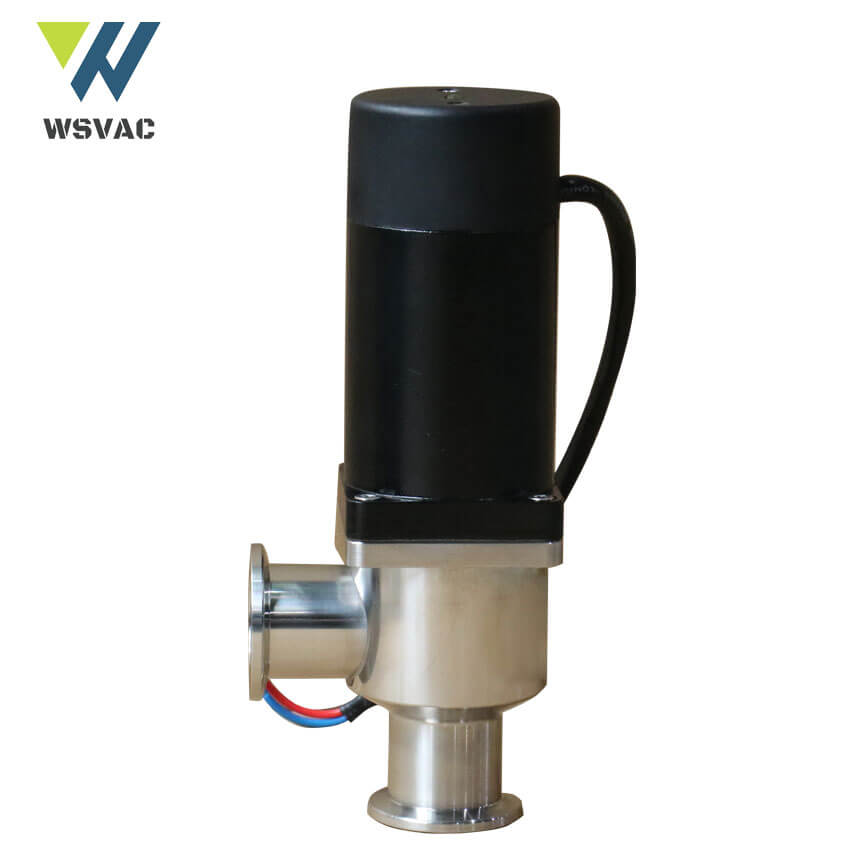

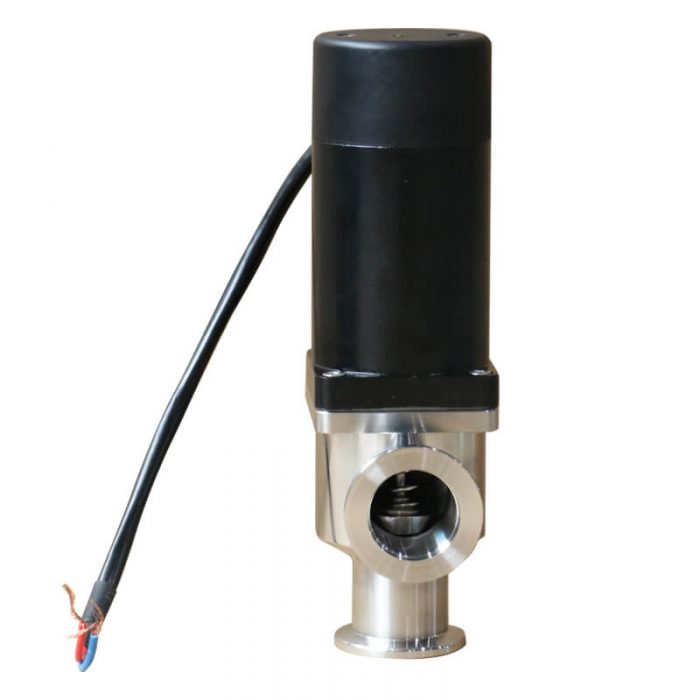

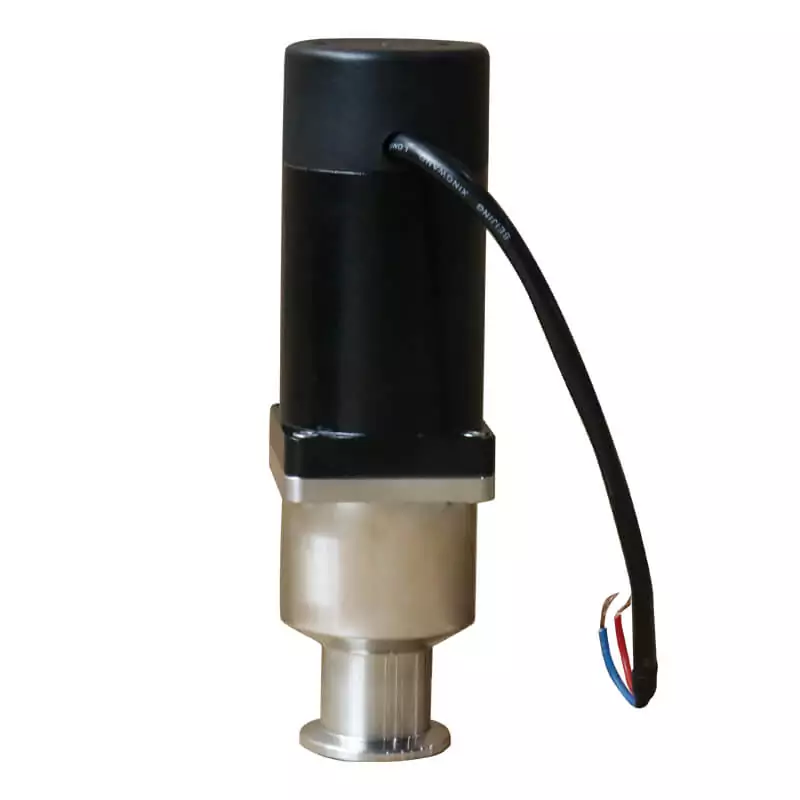

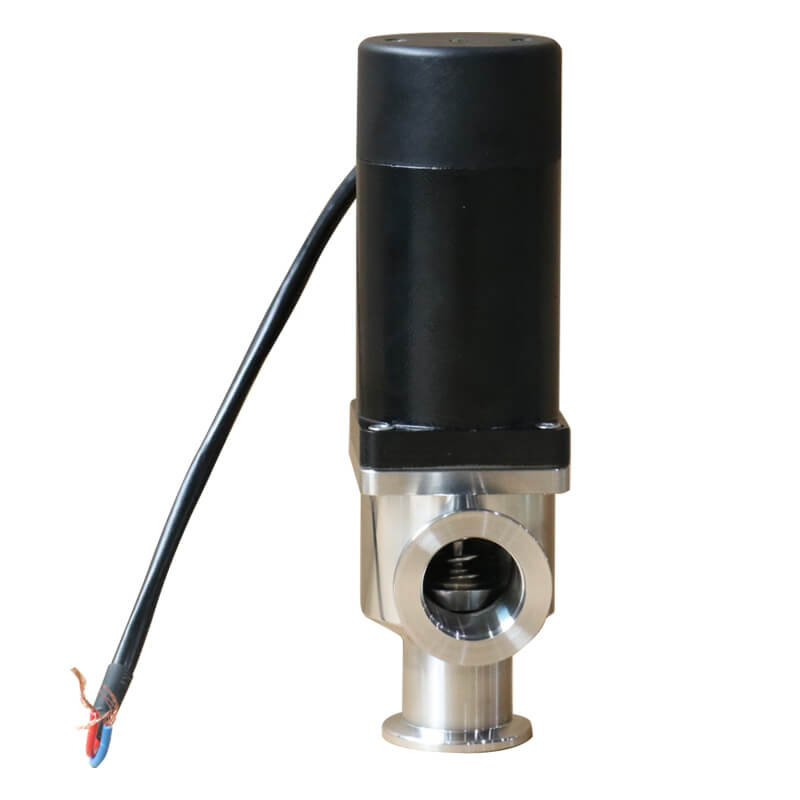

EVGDC Series High VacuumElectromagneticAngle Valve
| Model | EVGDC-J16B(KF)S | EVGDC-J25B(KF)S | EVGDC-J40B(KF)S | EVGDC-J50B(KF)S | |
| Pressure Range | Pa | 1×10-6Pa～1.2×105Pa(sealed with bellows)1×10-5Pa～1.2×105Pa(sealed with viton o-ring) | |||
| Inside Nominal Diameter | mm | 16 | 25 | 40 | 50 |
| Leak Rate | Pa·L/s | ≤1.3×10-7 | |||
| Service Life Until First Maintenance | time | 200000 | |||
| Heating Temperature(Valve Body) | ℃ | ≤120 | |||
| Supply Voltage | — | AC220V 50HzRange:85% Ue ~110% Ue | |||
| Start/Working Power | W | 600/0.7 | 800/1 | 1000/2 | 1400/3 |
| Opening / Closing Time | s | open≤0.2, close≤0.5 | |||
| Operating Rate | time/h | 300 | |||
| Positionindicator Of The Valve | — | Electric lights | |||
| Installation Orientation | Any(sealed with bellows),lower sealing surface vacuumed(sealed withfluorinerubber ring) | ||||
| Ambient Temperature | ℃ | 5~40 | |||
Electromagnetic Driven Type
| Model | DN | Size（mm） | ||||||
| A | B | C | D | E | F | G | ||
| EVGDC-6~10B(KF)S EVGDC-6~10(KF)S |
10 | 128 | 10 | 66 | 44 | 38 | 50 | 34 |
| EVGDC-16B(KF)S EVGDC-16(KF)S |
16 | 169 | 16 | 80 | 64 | 51 | 50 | 39 |
| EVGDC-25B(KF)S EVGDC-25(KF)S |
25 | 190(193) | 25 | 90 | 69 | 58 | 50 | 42 |
| EVGDC-40B(KF)S EVGDC-40(KF)S |
40 | 235(241) | 40 | 120 | 94(102) | 86 | 66 | 57(63) |
| EVGDC-50B(KF)S EVGDC-50(KF)S |
50 | 275 | 50 | 130 | 102(110) | 92 | 66 | 63(69) |
