Description

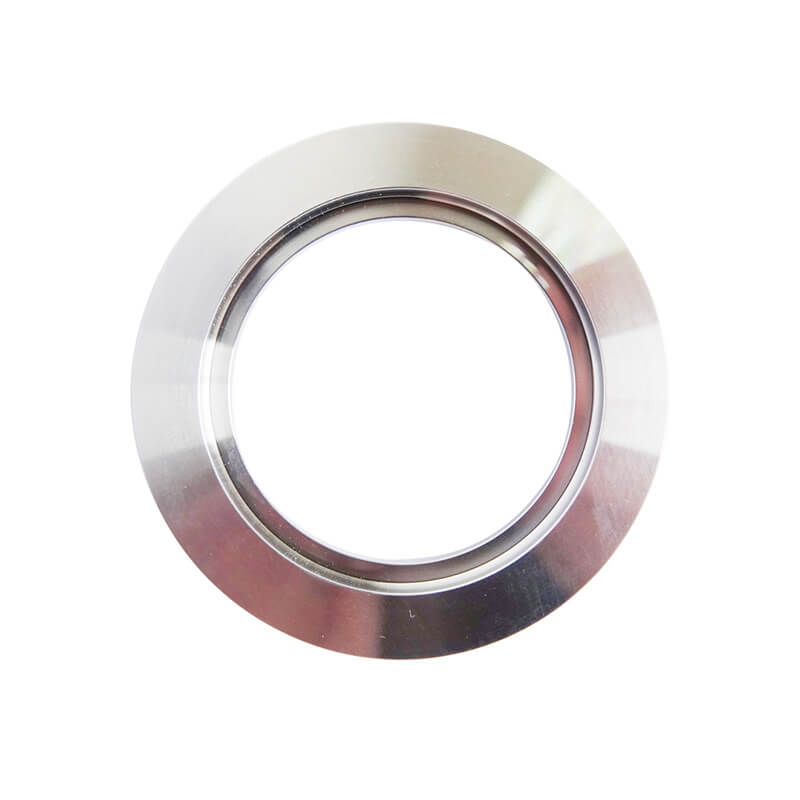

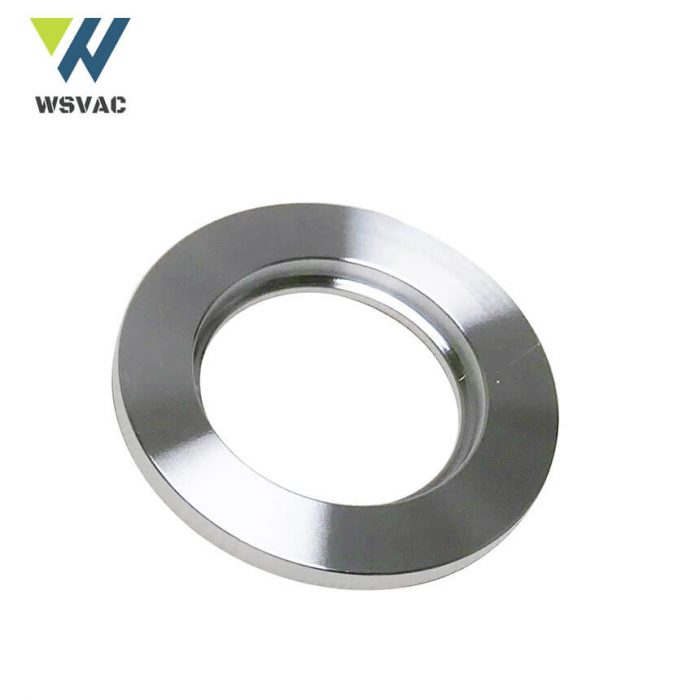

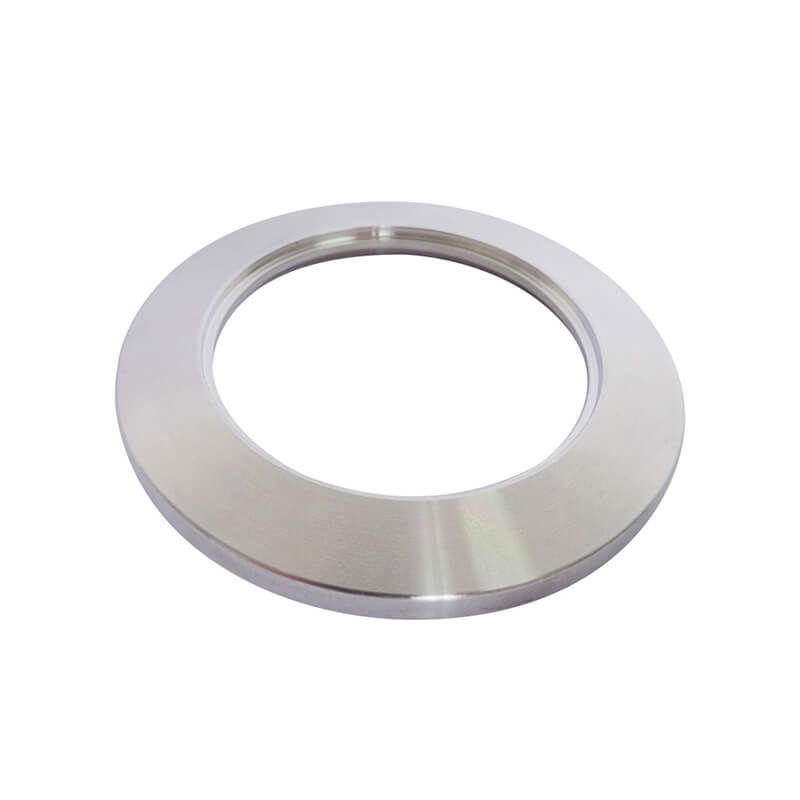

KF/NW Bored Blank
Made from corrosive resistance and durable material – Stainless Steel
Basic seal for closing off unused KF flange system
Can be heated up to 150°C
Used for creating vacuum tight seals
Used to build foreline vacuum plumbing and process systems
Used to connecting pipes, valves, pumps
Blank Flanges KF Stainless Steel are easy to use and quick to assemble
Requires the following to create tight / vacuum seal
Elastomer O-Ring for seal
Clamp to fasten
Vacuum accessories: flanges, fittings and adaptor
| Model | Size | A | B | C | D | Material | Order Number |
| KF10BS | KF10 | 30 | 12.2 | 5 | 12.9 | 304SS | C019 |
| KF16BS | KF16 | 30 | 17.2 | 5 | 19.3 | 304SS | C020 |
| KF25BS | KF25 | 40 | 26.2 | 5 | 25.7 | 304SS | C021 |
| KF40BS | KF40 | 55 | 41.2 | 5 | 38.4 | 304SS | C022 |
| KF50BS | KF50 | 75 | 52.2 | 5 | 51 | 304SS | C023 |
| KF63BS | KF63 | 87 | 70 | 5 | 63.7 | 304SS | C024 |
| KF80BS | KF80 | 114 | 83 | 12 | 76.4 | 304SS | C025 |
| KF100BS | KF100 | 134 | 102 | 12 | 101.8 | 304SS | C026 |
| KF150BS | KF150 | 190 | 153 | 12 | 152.9 | 304SS | C027 |
