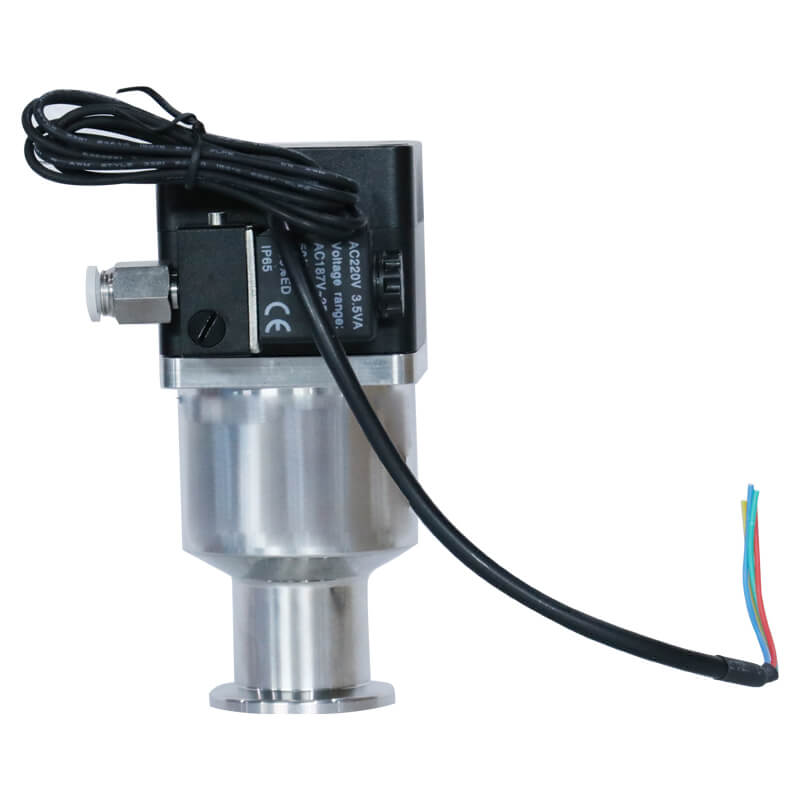

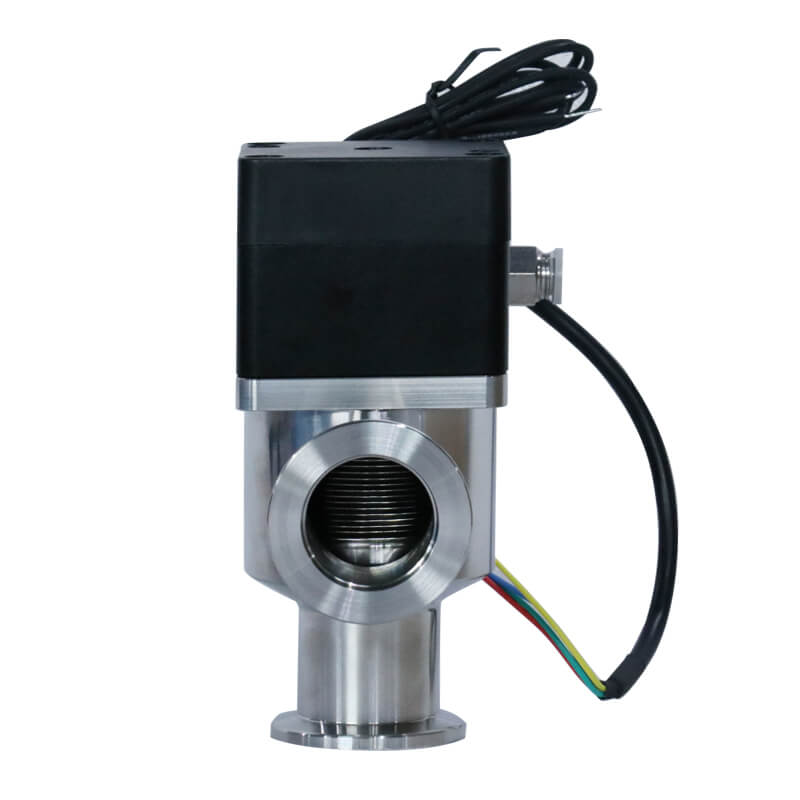

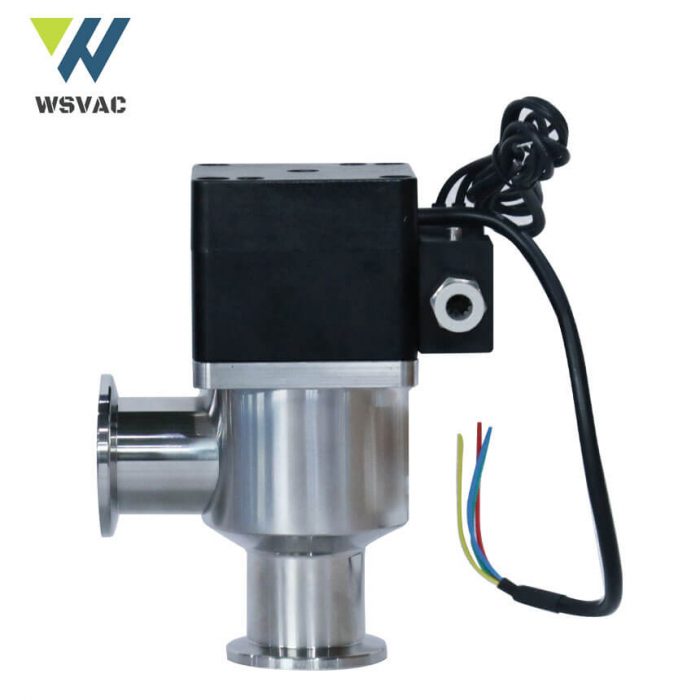

High Vacuum Pneumatic Angle Valve in DC24V/AC220V
Pneumatic Type EVGDQ Series High Vacuum Angle Valve, DN16-DN50
The pneumatic valve is powered by compressed air to open or close the valve plate. When the air source stops, the valve plate will automatically close by the spring force.The medium of the valve is air and a few corrosive gases.
Description
| Model | EVGDQ-J16B(KF)S | EVGDQ-J25B(KF)S | EVGDQ-J40B(KF)S | EVGDQ-J50B(KF)S | ||
| Pressure Range | Pa | 1×10-6Pa～1.2×105Pa(sealed with bellows)1×10-5Pa～1.2×105Pa(sealed with viton O ring) | ||||
| Inside Nominal Diameter | mm | 16 | 25 | 40 | 50 | |
| Leak Rate | Pa·L/s | ＜1.3×10-7 | ||||
| Service Life Until First Maintenance | time | 1000 000(sealed with bellows)600 000(sealed with fluorine rubber ring) | ||||
| Heating Temperature(Valve Body) | ℃ | ＜120 | ||||
| Supply Voltage | — | AC220V 50Hz,6W or DC24V,3W (Other specifications can be customized) | ||||
| Opening / Closing Time | s | ＜1 | ||||
| Compressed Air | MPa | 0.4~0.7 | ||||
| Position Indicator Of The Valve | — | Magnetic switch(component choosed) | ||||
| Installation Orientation | — | Any | ||||
| Ambient Temperature | ℃ | 5~40 | ||||
Pneumatic Type EVGDQ Series High Vacuum Angle Valve, DN63-DN250
| Model | EVGDQ-J63B(ISO-K)S | EVGDQ-J80B(ISO-K)S | EVGDQ-J100B(ISO-K)S | EVGDQ-S160B(ISO-K)S | EVGDQ-S200B(ISO-K)S | EVGDQ-S250B(ISO-K)S | |
| Pressure Range | Pa | 1×10-6Pa～1.2×105Pa(sealed with bellows) 1×10-5Pa～1.2×105Pa(sealed with fluorine rubber ring) |
|||||
| Inside Nominal Diameter | mm | 63 | 80 | 100 | 150 | 200 | 250 |
| Leak Rate | Pa·L/s | ≤1.3×10-7 | |||||
| Service Life Until First Maintenance | time | 200000 | |||||
| Heating Temperature(Valve Body) | ℃ | ≤120 | |||||
| Supply Voltage | — | AC220V 50Hz,6W or DC24V,3W (Other specifications can be customized) | |||||
| Opening / Closing Time | s | ≤1 | |||||
| Compressed Air | MPa | 0.4~0.7 | |||||
| Position Indicator Of The Valve | — | Magnetic switch(component optional) | |||||
| Installation Orientation | — | Any | |||||
| Ambient Temperature | ℃ | 5~40 | |||||
