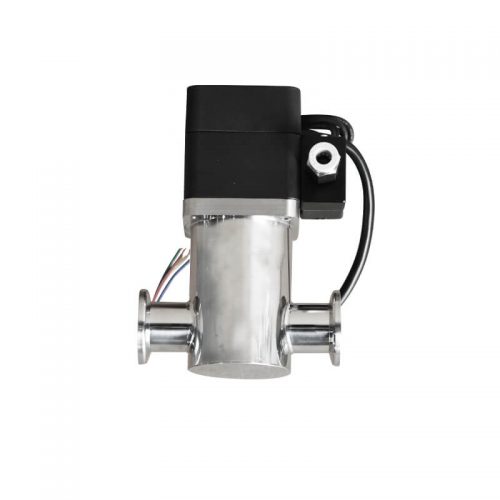

High Vacuum electromagnetic driven Straight Valve DN16-DN50
The electromagnetic driven types straight vacuum pump with smooth operation, small size, reliable use, good sealing performance and long service life. It is one of the preferred valves for vacuum equipment. Applicable medium can be pure air and non-corrosive gas.
Description

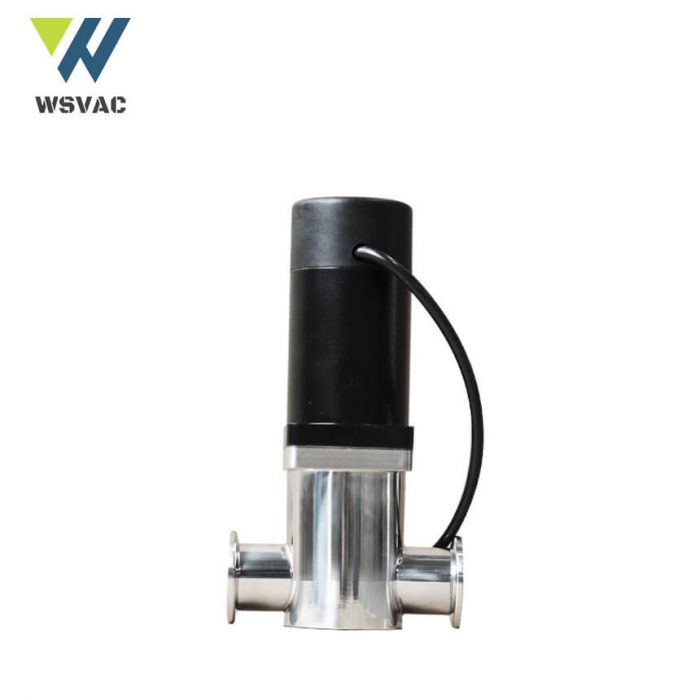

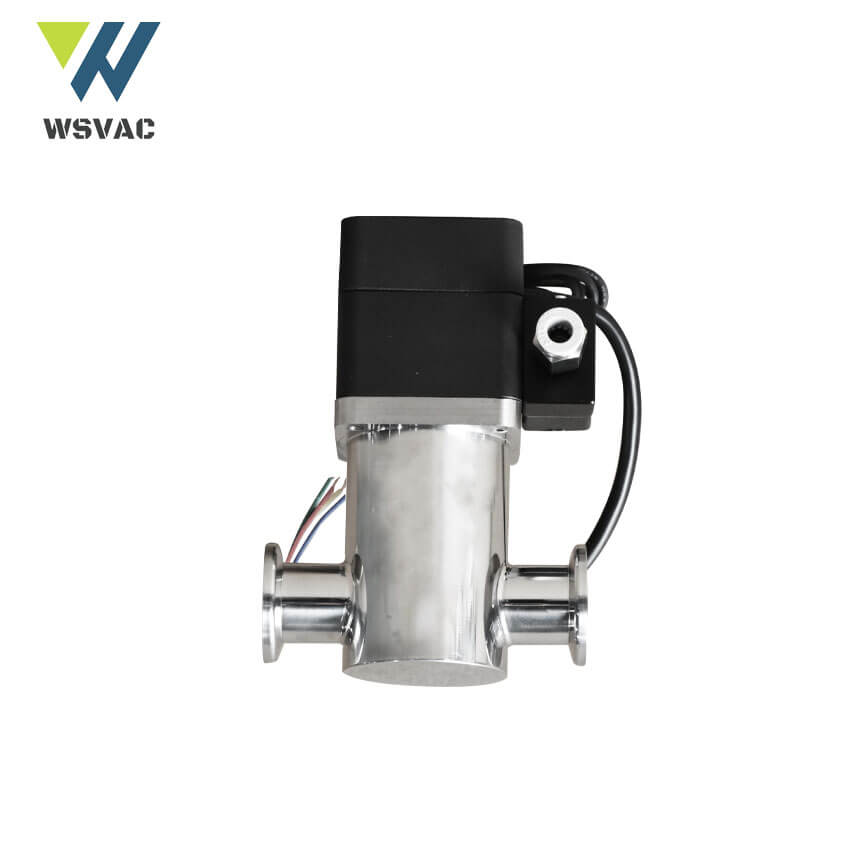

High Vacuum electromagnetic driven Straight Valve
| Working pressure | Atmospheric temperature to 1 x 10-6 Pa |
| Leak rate | ≤1.3×10-7 Pa・L/s |
| service life until first maintenance | Pneumatic 200000 repetitions |
| Heating temperature(Valve body) | Open ≤200℃; Close ≤150℃ |
| Supply voltage | AC220V 50Hz,6W or DC24V,3W (Other specifications can be customized) |
| Opening / closing time | ≤1s |
| Compressed air | 0.4~0.7MPa |
| Position indicator of the valve | Magnetic switch(component choosed) |
| Model | DN | External Dimensions（mm） | ||||||
| A | B | C | D | E | F | G | ||
| EVGDC-6~10B(KF)S | 10 | 128 | 10 | 66 | 44 | 38 | 50 | 34 |
| EVGDC-6~10(KF)S | ||||||||
| EVGDC-16B(KF)S | 16 | 169 | 16 | 80 | 64 | 51 | 50 | 39 |
| EVGDC-16(KF)S | ||||||||
| EVGDC-25B(KF)S | 25 | 190(193) | 25 | 90 | 69 | 58 | 50 | 42 |
| EVGDC-25(KF)S | ||||||||
| EVGDC-40B(KF)S | 40 | 235(241) | 40 | 120 | 94(102) | 86 | 66 | 57(63) |
| EVGDC-40(KF)S | ||||||||
| EVGDC-50B(KF)S | 50 | 275 | 50 | 130 | 102(110) | 92 | 66 | 63(69) |
| EVGDC-50(KF)S | ||||||||
