Description

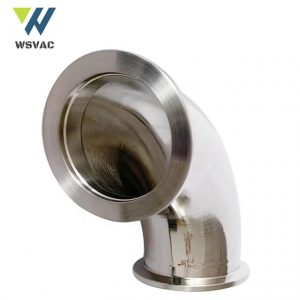

Basic curved elbow fittings
Glass blasted on both inside and outside surface
Require the following to create tight / vacuum seal
Elastomer O-Ring to seal each flange ending
Clamp to fasten each flange ending
Can be heated up to 150°C
Ideal for high vacuum process and applications
Used to build process vacuum plumbing and systems for industrial applications
Used to make a right angle change of direction between two flange faces
Used to connecting pipes, valves, pumps
They are easy to use and quick to assemble
KF 90 degree elbows are made of corrosive resistant material – stainless steel
Vacuum accessories: pipes, flanges, fittings and adaptor
| Model | Size | A | B | Material | Order Number |
| KF10EL90ES | KF10 | 30 | 30 | 304SS | C073 |
| KF16EL90ES | KF16 | 40 | 30 | 304SS | C074 |
| KF25EL90ES | KF25 | 50 | 40 | 304SS | C075 |
| KF40EL90ES | KF40 | 65 | 55 | 304SS | C076 |
| KF50EL90ES | KF50 | 70 | 75 | 304SS | C077 |
