Description

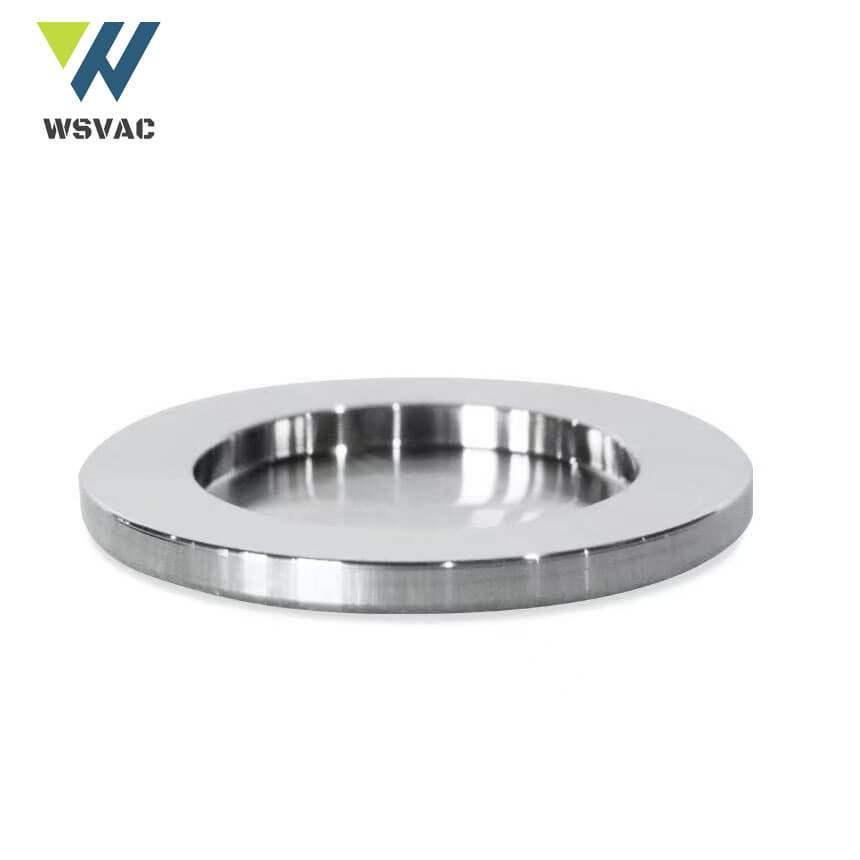

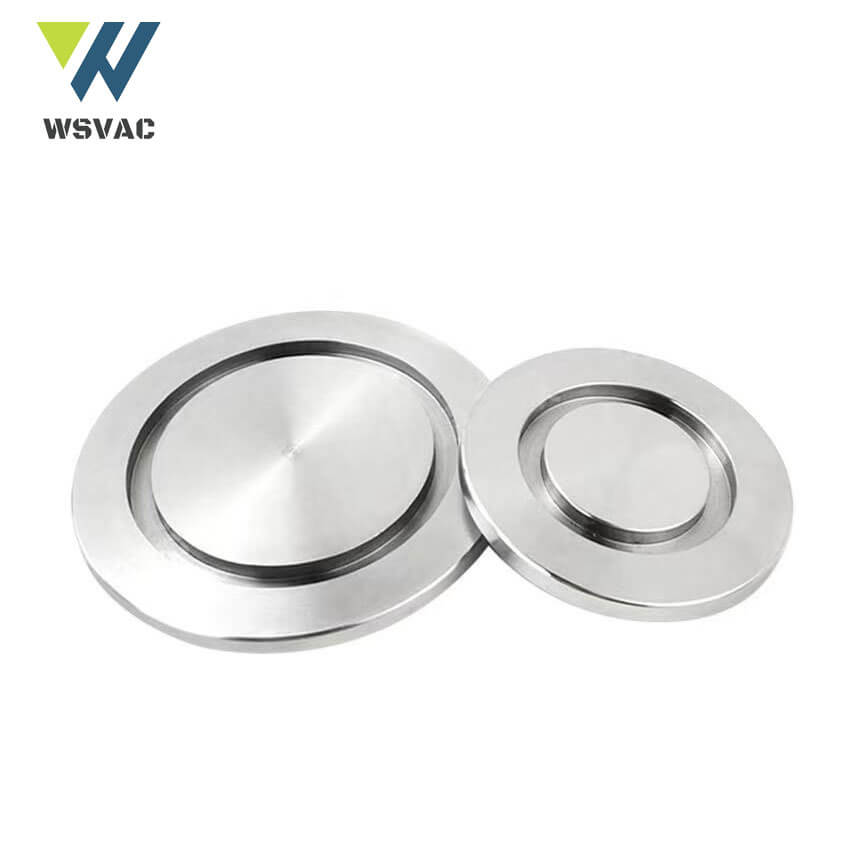

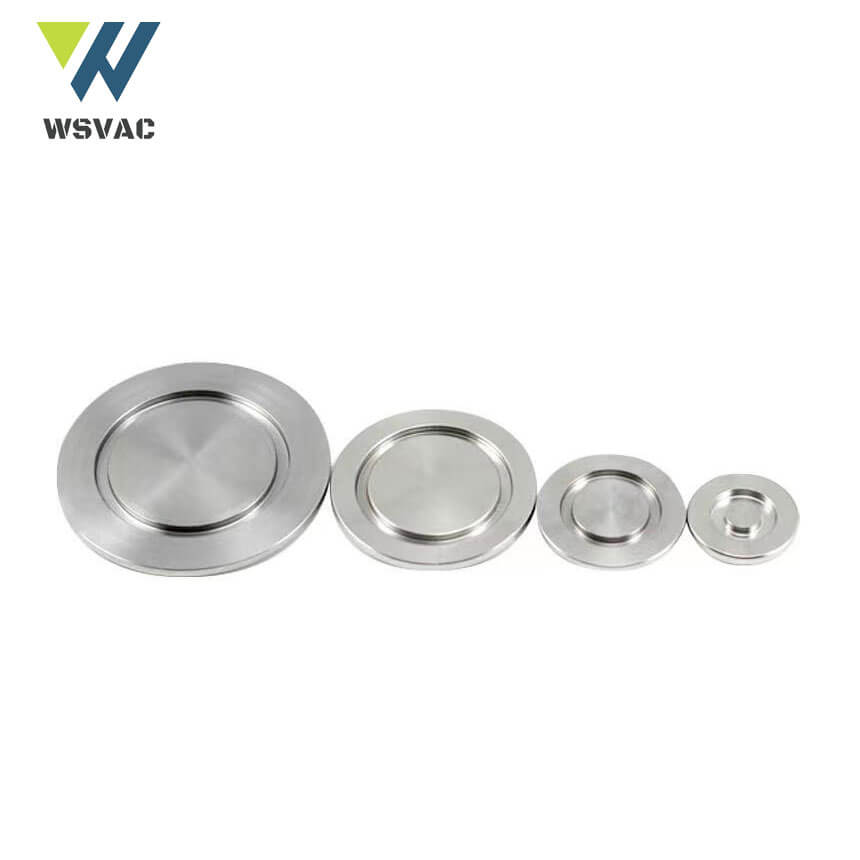

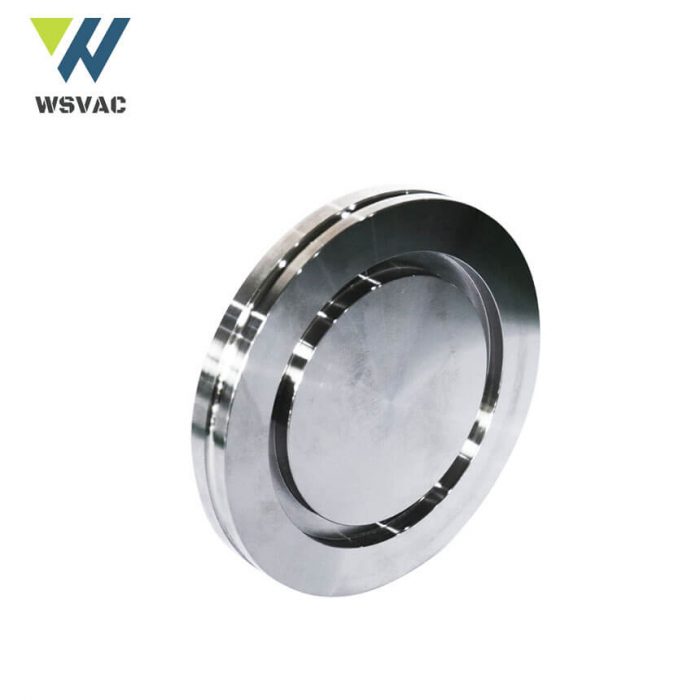

KF Blank Flanges & NW Flanges
Can be heated up to 150°C
Requires the following to create a tight/ vacuum seal
Elastomer O-Ring for seal
Clamp to fasten
Made from corrosive resistance material – stainless steel
Used to build process vacuum plumbing and systems for industrial applications
Used to connecting pipes, valves, pumps
KF Blank flanges/NW Flanges are easy to use and quick to assemble
Vacuum accessories: flanges, fittings and adaptor
| Part Number | Size | A | B | C | Material | Order Number |
| KF10BFS | KF10 | 30 | 12.2 | 5 | 304SS | C001 |
| KF16BFS | KF16 | 30 | 17.2 | 5 | 304SS | C002 |
| KF25BFS | KF25 | 40 | 26.2 | 5 | 304SS | C003 |
| KF40BFS | KF40 | 55 | 41.2 | 5 | 304SS | C004 |
| KF50BFS | KF50 | 75 | 52.2 | 5 | 304SS | C005 |
| KF10BFA | KF10 | 30 | 12.2 | 5 | Aluminum | C010 |
| KF16BFA | KF16 | 30 | 17.2 | 5 | Aluminum | C011 |
| KF25BFA | KF25 | 40 | 26.2 | 5 | Aluminum | C012 |
| KF40BFA | KF40 | 55 | 41.2 | 5 | Aluminum | C013 |
| KF50BFA | KF50 | 75 | 52.2 | 5 | Aluminum | C014 |
