Description

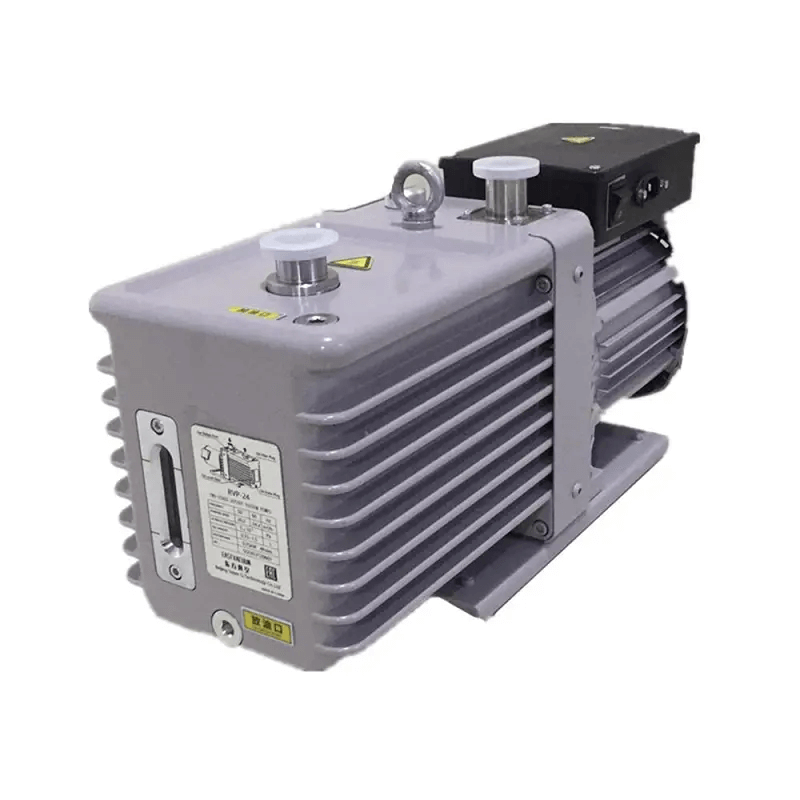

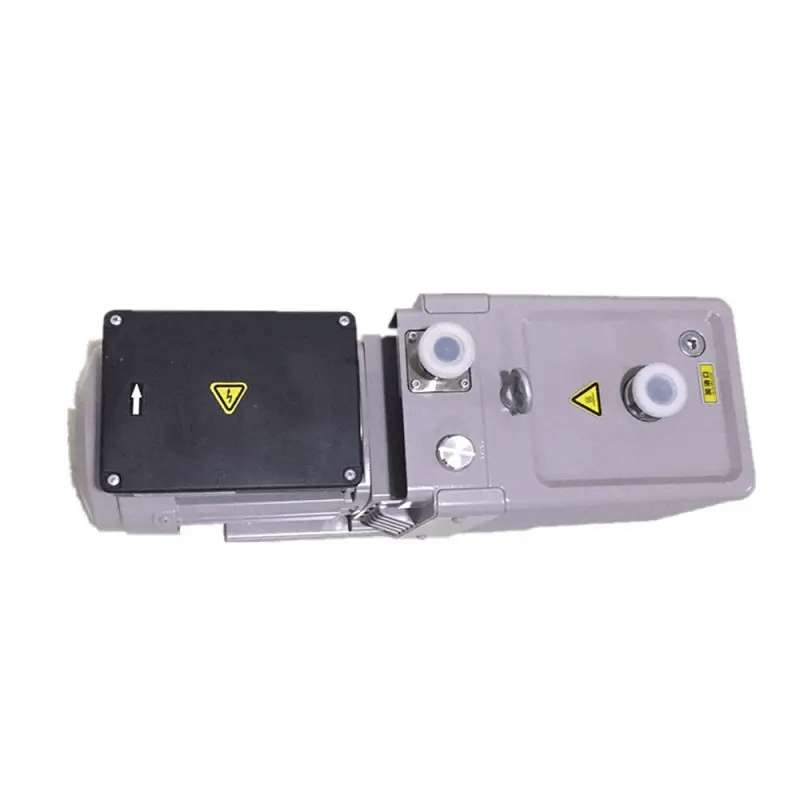

The RVP series Oil Rotary Vacuum pumps are compact, low noise, two-stage, oil-sealed, high-vacuum pumps designed for reliable, long-term operation in both laboratory and industrial environments. A four-pole three-phase motor provides direct-drive through a flexible coupling.
Widely used in food, scientific research, medical, electronic, chemical, pharmaceutical, college laboratories.
Technical Data:
| Model | RVP10 | RVP16 | RVP24 | |
| Pumping Speedm3/H | 50Hz | 9.9 | 14.4 | 20 |
| 60Hz | 12 | 17.4 | 24 | |
| Ultimate PressurePa | GP open | 5 | ||
| GP Close | 0.5 | |||
| Motor KW | 380V(3phases) | 0.4(4poles) | 0.55(4poles) | 0.75(4poles) |
| 220V(Single Phase) | ||||
| Inlet | KF25 | |||
| Outlet | G1 | |||
| Vacuum Pump Oil | RVP68 | |||
| Oil Capacity L | 1.1 | 1.2 | 1～1.5 | |
| Weight Kg | 25 | 27 | 32 | |
| Model | RVP30 | RVP40 | RVP60 | RVP90 | |
| Pumping Speedm3/H | 50Hz | 30 | 40 | 60 | 90 |
| 60Hz | 36 | 48 | 72 | 108 | |
| Ultimate PressurePa | GP open | 3 | |||
| GP Close | 0.5 | ||||
| Motor KW | 3phases4poles | 1.5 | 1.5 | 2.2 | 3.7 |
| Inlet | VG40 | VG50 | |||
| Outlet | M50X1.5 | ||||
| Vacuum Pump Oil | RVP68 | ||||
| Oil Capacity L | 1.2～2.8 | 2.5～4.2 | |||
| Weight Kg | 63 | 65 | 87 | 101 | |
The RVP series Oil Rotary Vacuum pumps Applications:
It can be used for electric vacuum container manufacturer, vacuum welding, printing, blister, refrigeration equipment maintenance and equipment matching and laboratory.
