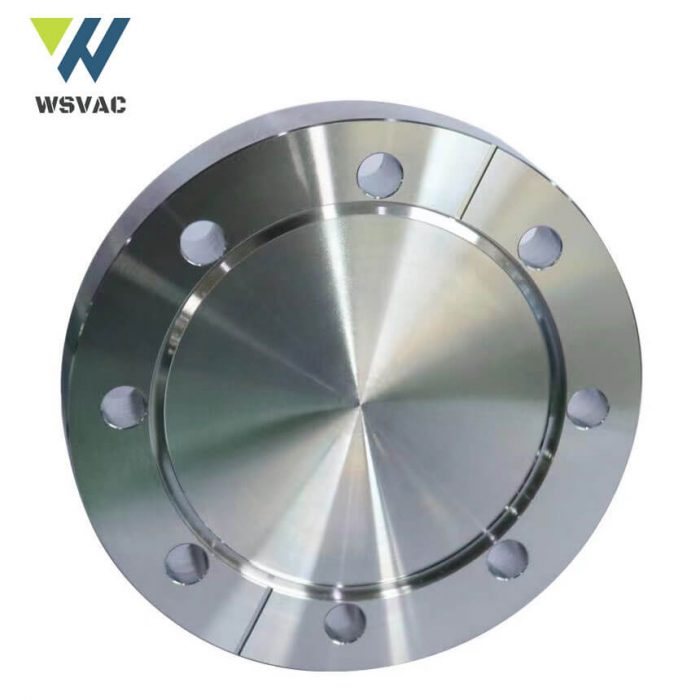

Stainless Steel Conflat CF Blank Flange

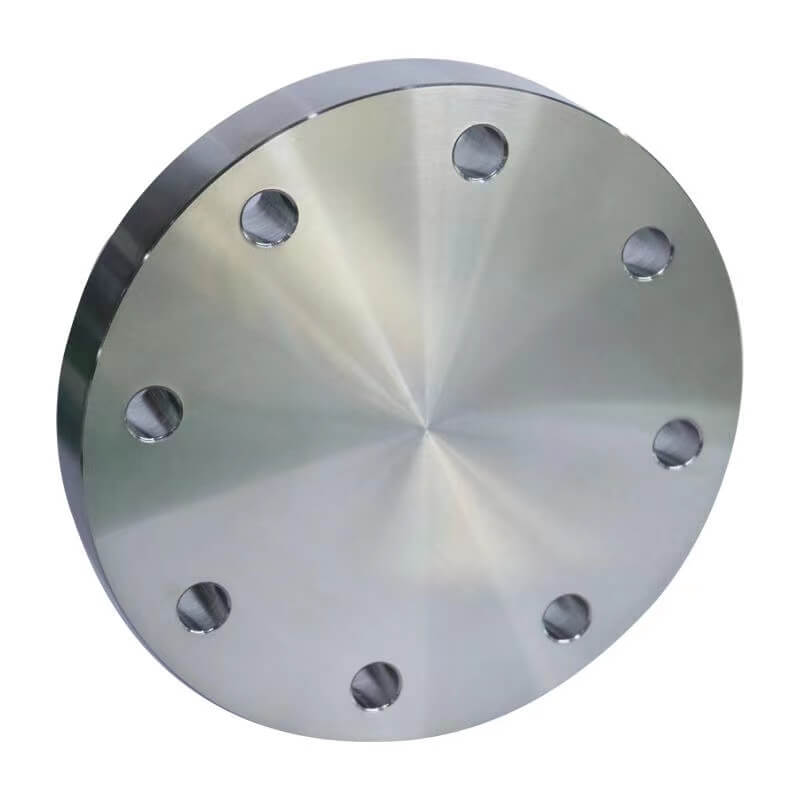

Stainless Steel Conflat CF Blank Flange - Image 2

Stainless Steel Conflat CF Blank Flange

Categories:

All of our vacuum fittings are made from 304 stainless steel tube and 304 stainless steel CF or ISO NW flanges. Other options such as 316 stainless steel are available.The fittings are also good for High In-Vacuum (HV) and Ultrahigh (UHV) vacuum uses.

Description

CF Blank Flange

Model Size A B C*No. P.C.D Material Order Number
CF16BF CF16 33.8 7.5 4.4*6 26.9 304SS C600
CF35BF CF35 69.5 12.7 6.7*6 58.7 304SS C602
CF63BF CF63 113.6 18 8.4*8 92.1 304SS C604
CF100BF CF100 151.6 20 8.4*16 130.3 304SS C606
CF150BF CF150 202.5 22 8.4*20 181 304SS C607
CF200BF CF200 253.2 24.7 8.4*24 231.8 304SS C608
CF250BF CF250 304 28.5 8.4*32 284 304SS C609
CF275BF CF275 336.5 28.5 10.3*30 306.5 304SS C610
CF300BF CF300 355.6 28.5 10.3*30 325.7 304SS C611
CF16BF-316 CF16 33.8 7.5 4.4*6 26.9 316SS C612
CF35BF-316 CF35 69.5 12.7 6.7*6 58.7 316SS C613
CF63BF-316 CF63 113.6 18 8.4*8 92.1 316SS C614
CF100BF-316 CF100 151.6 20 8.4*16 130.3 316SS C615
CF150BF-316 CF150 202.5 22 8.4*20 181 316SS C616
CF200BF-316 CF200 253.2 24.7 8.4*24 231.8 316SS C617
CF250BF-316 CF250 304 28.5 8.4*32 284 316SS C618
CF275BF-316 CF275 336.5 28.5 10.3*30 306.5 316SS C619
CF300BF-316 CF300 336.5 28.5 10.3*30 325.7 316SS C620

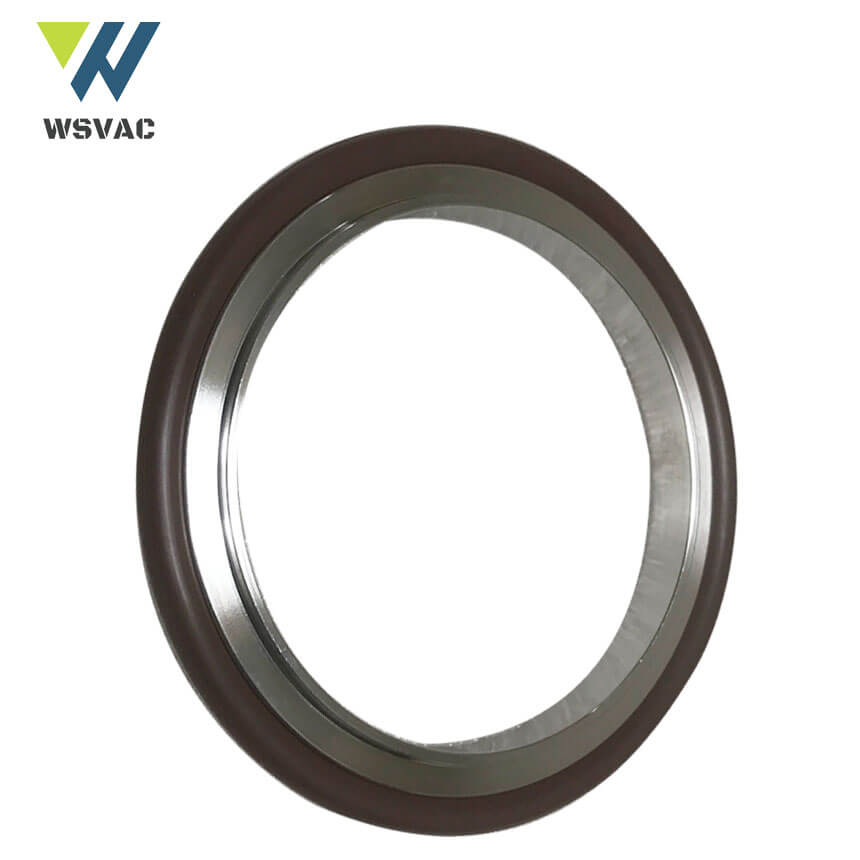

Vacuum pipe Fittings ISO Centering Ring With O’Ring
