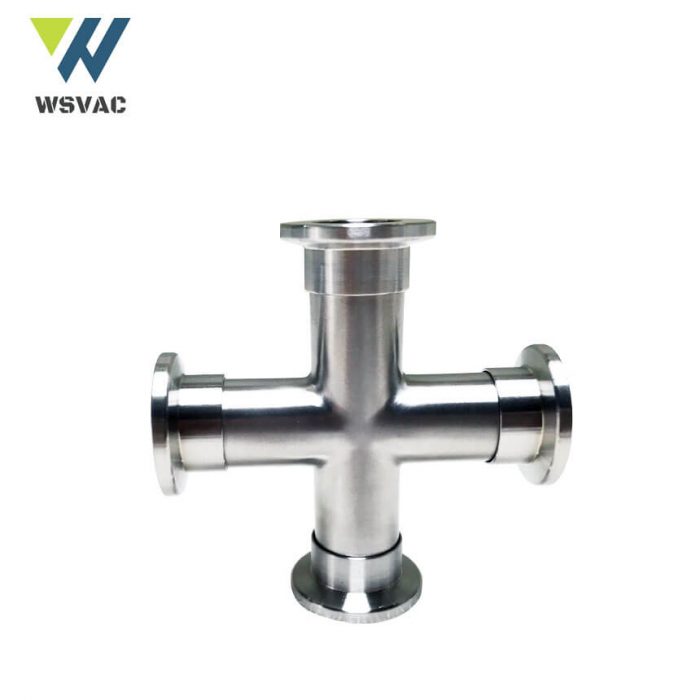

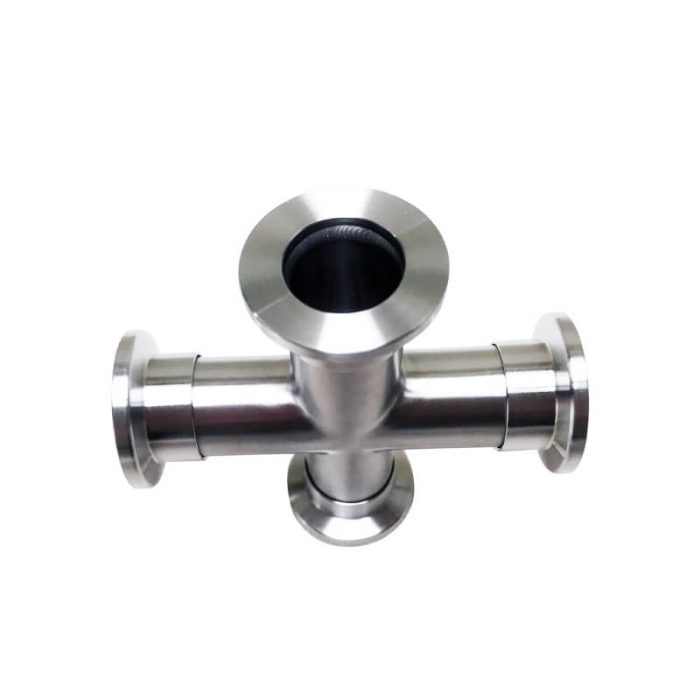

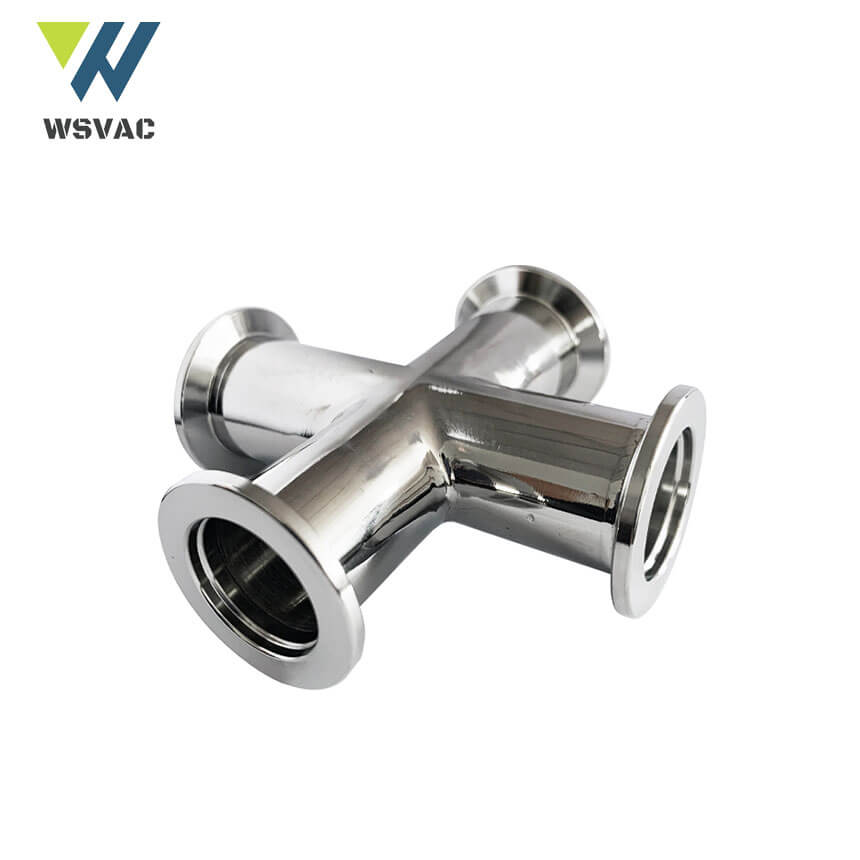

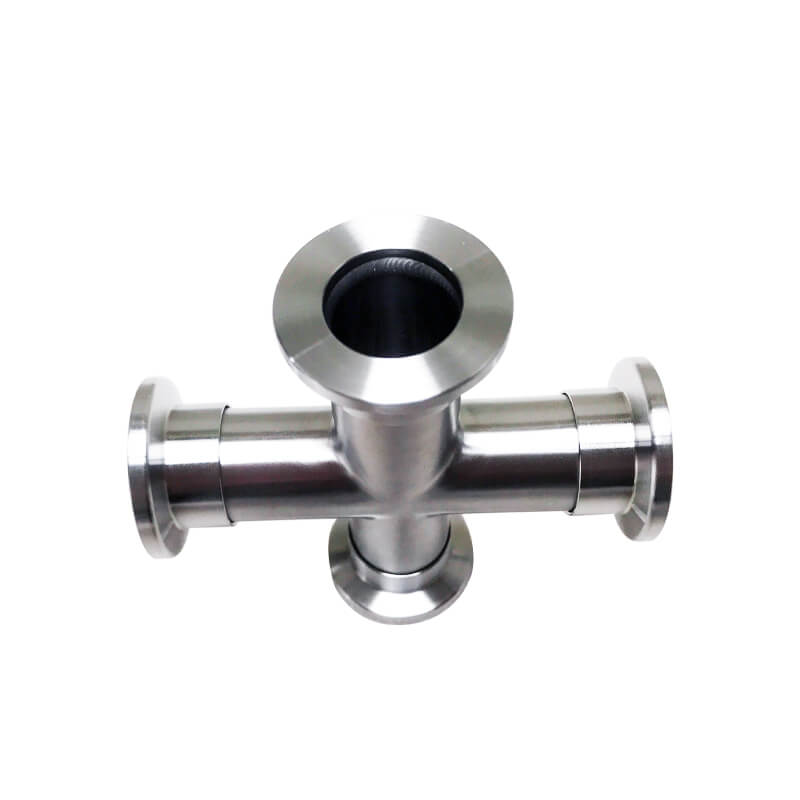

Staniless Steel 304 Vacuum KF 4 Way Crosses

Categories:

KF 4 way crosses material are in ss304. All KF series quick release flange are manufactured to the GB4982-85 Standard.Can custom made.

Description

We are professionalized in vacuum corrugated pipe, quick release flange, vacuum connections, vacuum components, KF flange, vacuum parts, callipers and bolts, stainless steel vacuum corrugated pipe. All can be designed according to different requirements from customers.

KF series quick release flange are manufactured to the GB4982-85 Standard, another vacuum components and different specifications of three-way types, blind plates, metal flexible corrugated pipes, callipers and bolts, heel blocks, holders are manufactured to the ISO Standard. It is widely used in the assorted Vacuum systems or the low-voltage pipe system, such as industry electronic, food machinery, petrochemical industry, medicine machinery, which is sealed superior and connected reliable.

KF 4-Way Crosses

Model Size A B C D Material Order Number
KF10XES KF10 30 14 30 60 304SS C093
KF16XES KF16 40 19.05 30 80 304SS C094
KF25XES KF25 50 25.4 40 100 304SS C095
KF40XES KF40 65 38.1 55 130 304SS C096
KF50XES KF50 70 50.8 75 140 304SS C097

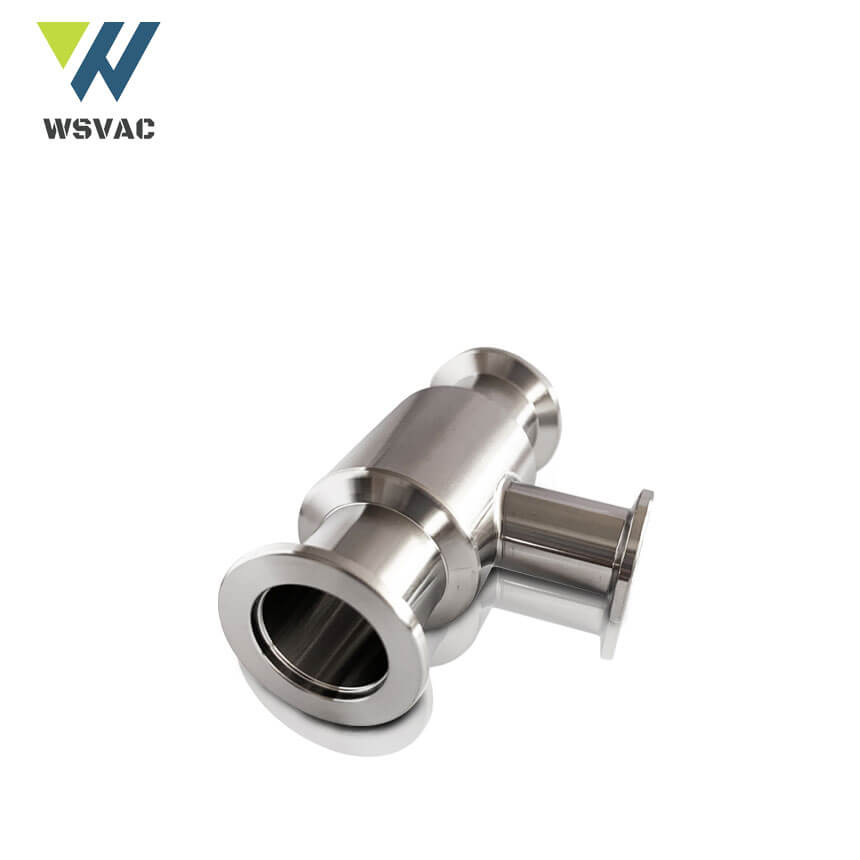

Vacuum Components Stainless Steel KF Tees
