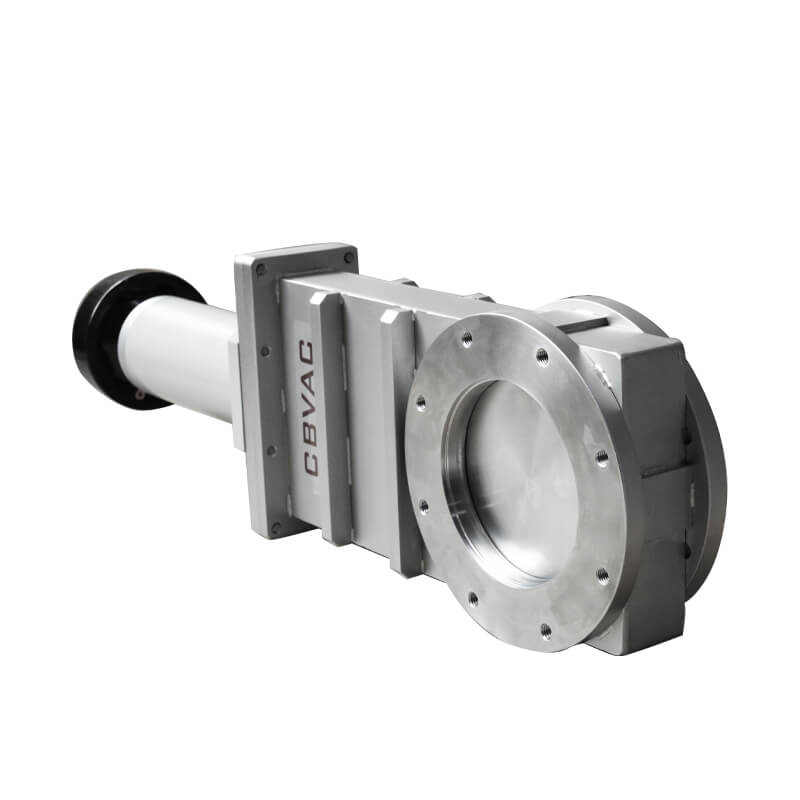

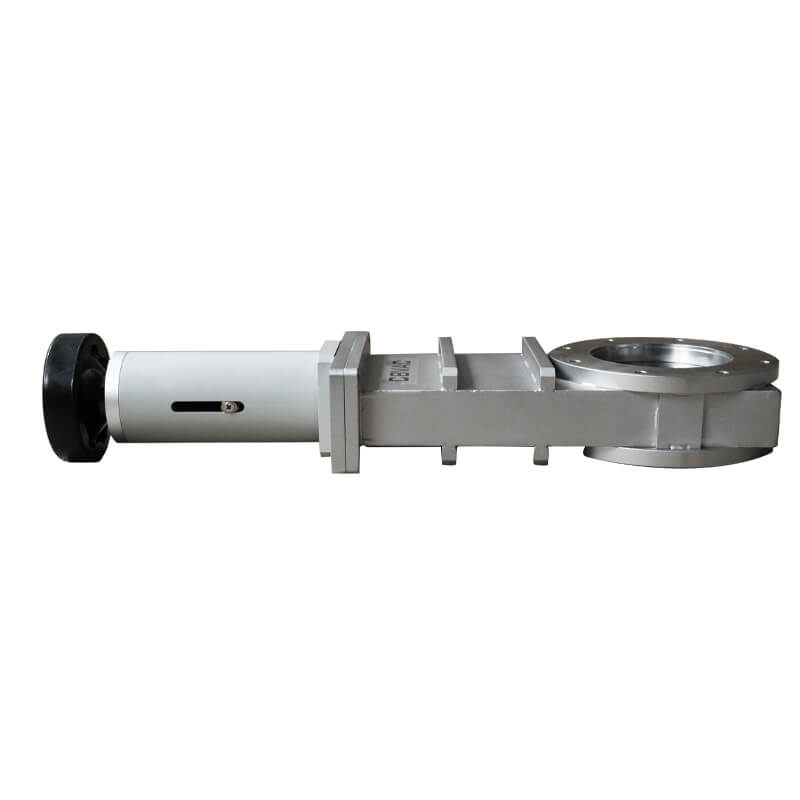

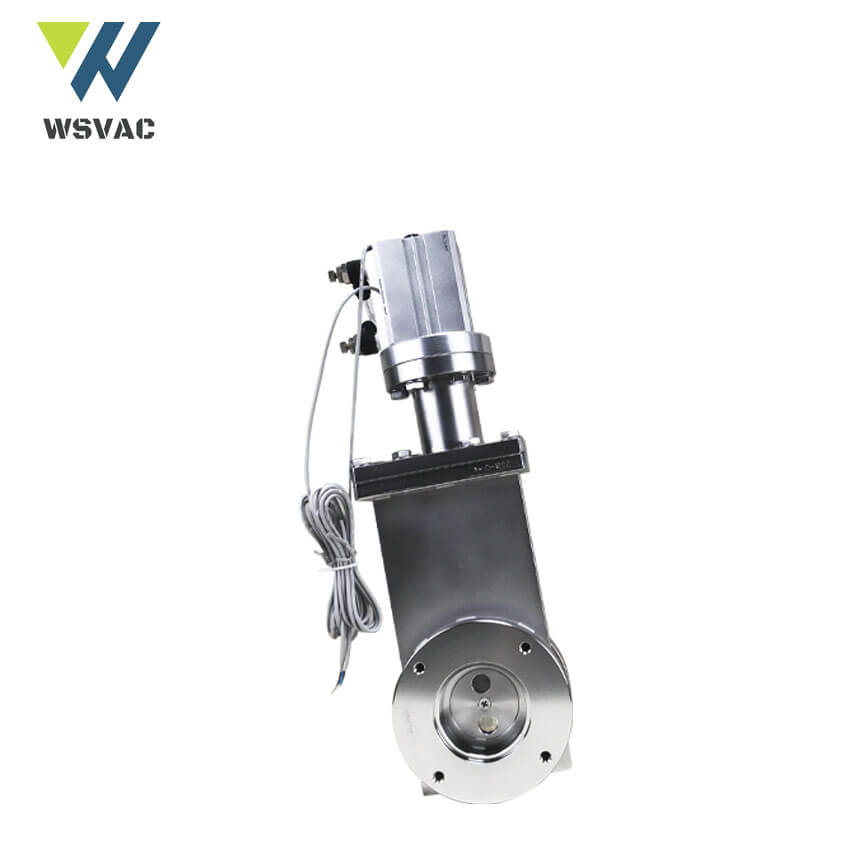

Ultra High Vacuum manual Gate valves
The EVCC type ultra-high vacuum insert valve is driven by the handle to move the stem up and down so that the valve plate is opened or closed.Valves are suitable for cutting off or connecting air flow in ultra-high vacuum system. It has the advantages of reasonable structure design, stable operation, small size, reliable use, good sealing performance and long service life. It can be widely used in ultra-high vacuum equipment. The suitable working medium is clean air and non-corrosive gas.
Description
Specification of Ultra High Vacuum Manual Gate Valve
| Pressure Range | 1.0×10-6Pa～1.2x105Pa(sealed with bellows) |
| Leak Rate Pa·L/S | ≤1.3×10-7 |
| Service Life Until First Maintenance | 100 000(sealed with bellows) |
| Heating Temperature(Valve Body)℃ | opend≤200Closed≤150 |
| Opening / Closing Times | Manual operation time |
| Position Indicator Of The Valve | overtravel-limit switch |
| Installation Orientation | any |
Selection for the right model no.
| Product | Model | Material | Weight | Super Q order no. |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-25B(KF) | 304 | V322 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-25B(CF) | 304 | V323 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-40B(KF) | 304 | V324 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-40B(CF) | 304 | V325 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-50B(KF) | 304 | V326 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-50B(CF) | 304 | V327 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(CF) | 304 | 6.3 | V328 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(ISO-K) | 304 | 5.0 | V329 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(GB-LP) | 304 | 6.5 | V330 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-63B(ISO-F) | 304 | 6.5 | V331 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(CF) | 304 | 8.2 | V332 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(ISO-K) | 304 | 8.4 | V333 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(GB-LP) | 304 | 8.6 | V334 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-80B(ISO-F) | 304 | 8.6 | V335 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(CF) | 304 | 9.7 | V336 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(ISO-K) | 304 | 9 | V337 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(GB-LP) | 304 | 9.8 | V338 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-100B(ISO-F) | 304 | 9.8 | V339 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(CF) | 304 | 16.5 | V340 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(ISO-K) | 304 | 14.3 | V341 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(GB-LP) | 304 | 16.5 | V342 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-160B(ISO-F) | 304 | 16.5 | V343 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(CF) | 304 | 24.1 | V344 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(ISO-K) | 304 | 22.5 | V345 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(GB-LP) | 304 | 23.5 | V346 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-200B(ISO-F) | 304 | 23.5 | V347 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(CF) | 304 | 36.8 | V348 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(ISO-K) | 304 | 35.5 | V349 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(GB-LP) | 304 | 31 | V350 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-250B(ISO-F) | 304 | 31 | V351 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(ISO-K) | 304 | 40.5 | V352 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(GB-LP) | 304 | 42.0 | V353 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-320B(ISO-F) | 304 | 42.0 | V354 |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(ISO-K) | 304 | V355 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(GB-LP) | 304 | V356 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-400B(ISO-F) | 304 | V357 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(ISO-K) | 304 | V358 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(GB-LP) | 304 | V359 | |
| Ultra-High Vacuum Manual Driven Gate Valves | EVCC-500B(ISO-F) | 304 | V360 |

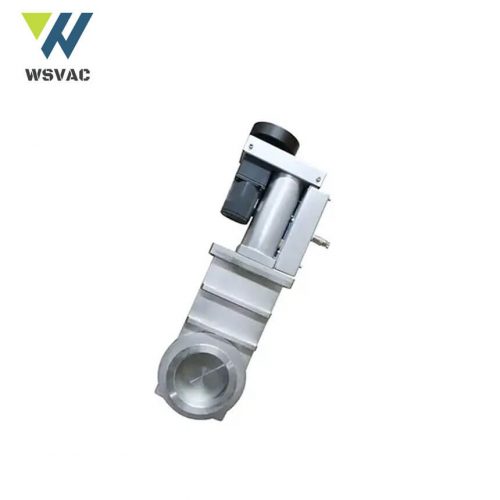

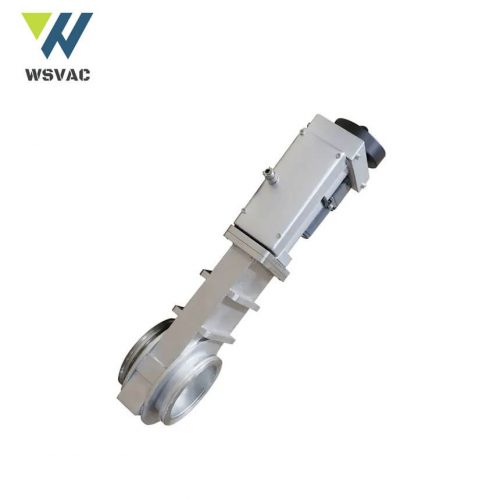

Motor Driven Type（Bellow seal）
External Dimenstions (mm)
| Model | DN |
External Dimenstions (mm) |
|||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
||
|
EVCCD-100B(CF) |
100 |
144 |
170 |
68 |
241 |
551.5 |
74 |
40 |
242.5 |
69 |
100 |
75 |
86 |
101 |
106 |
|
EVCCD-160B(CF) |
160 |
201 |
226 |
95.5 |
328 |
705.5 |
76 |
45 |
282 |
69 |
100 |
76 |
92 |
101 |
121 |
|
EVCCD-200B(CF) |
200 |
258 |
276 |
120 |
414.5 |
816.5 |
76 |
47 |
282 |
69 |
100 |
76 |
92 |
101 |
121 |
|
EVCCD-250B(CF) |
250 |
310 |
334 |
146 |
500 |
956 |
87 |
54.5 |
310 |
70 |
100 |
86 |
92 |
106 |
121 |
|
EVCCD-320B(CF) |
320 |
425 |
449 |
212.5 |
669.5 |
1218 |
138 |
78 |
336 |
80 |
110 |
118 |
108 |
105 |
190 |
|
EVCCD-400B(CF) |
400 |
512 |
536 |
256 |
810 |
1475 |
138 |
78 |
409 |
80 |
110 |
117 |
118 |
108 |
190 |
Motor Driven Type（Viton o-ring sealed）
| Model | DN |
External Dimenstions (mm) |
|||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
||
| EVGCD-100(CF) EVGCD-100(ISO-K) EVGCD-100(GB-LP) EVGCD-100(ISO-F) |
100 |
144 |
170 |
68 |
241 |
551.5 |
74 |
40 |
242.5 |
69 |
100 |
75 |
86 |
101 |
106 |
| EVGCD-160(CF) EVGCD-160(ISO-K) EVGCD-160(GB-LP) EVGCD-160(ISO-F) |
160 |
201 |
226 |
95.5 |
328 |
705.5 |
76 |
45 |
282 |
69 |
100 |
76 |
92 |
101 |
121 |
| EVGCD-200(CF) EVGCD-200(ISO-K) EVGCD-200(GB-LP) EVGCD-200(ISO-F) |
200 |
258 |
276 |
120 |
414.5 |
816.5 |
76 |
47 |
282 |
69 |
100 |
76 |
92 |
101 |
121 |
| EVGCD-250(CF) EVGCD-250(ISO-K) EVGCD-250(GB-LP) EVGCD-250(ISO-F) |
250 |
310 |
334 |
146 |
500 |
956 |
87 |
54.5 |
310 |
70 |
100 |
86 |
92 |
106 |
121 |
| EVGCD-320(CF) EVGCD-320(ISO-K) EVGCD-320(GB-LP) EVGCD-320(ISO-F) |
320 |
425 |
449 |
212.5 |
669.5 |
1218 |
138 |
78 |
336 |
80 |
110 |
118 |
108 |
105 |
190 |
| EVGCD-400(CF) EVGCD-400(ISO-K) EVGCD-400(GB-LP) EVGCD-400(ISO-F) |
400 |
512 |
536 |
256 |
810 |
1475 |
138 |
78 |
409 |
80 |
110 |
117 |
118 |
108 |
190 |
