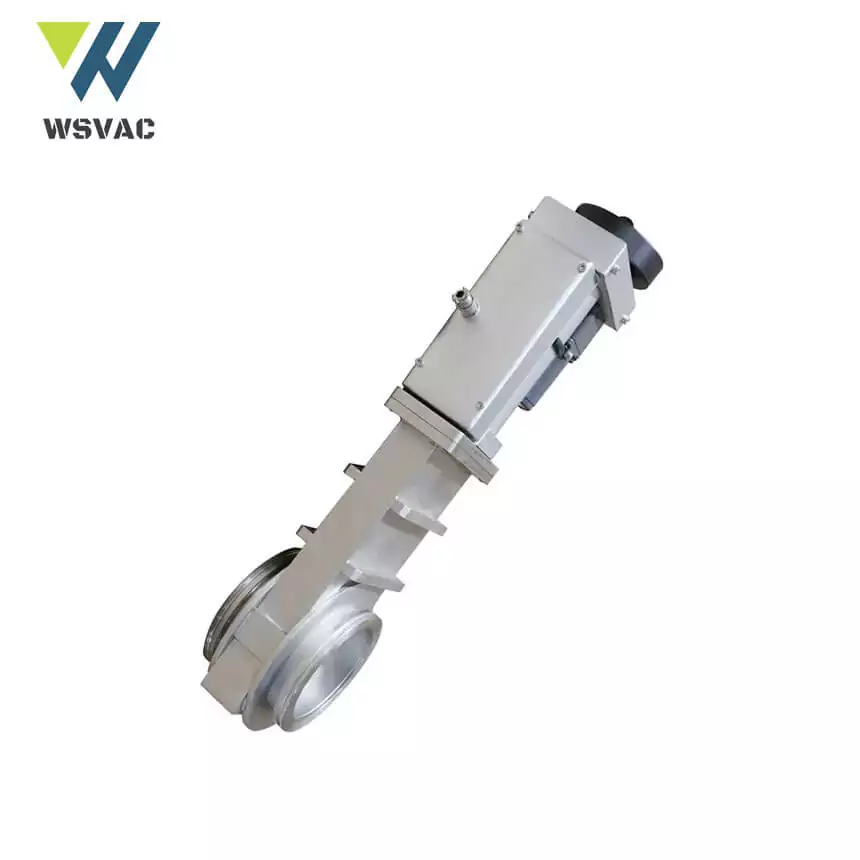

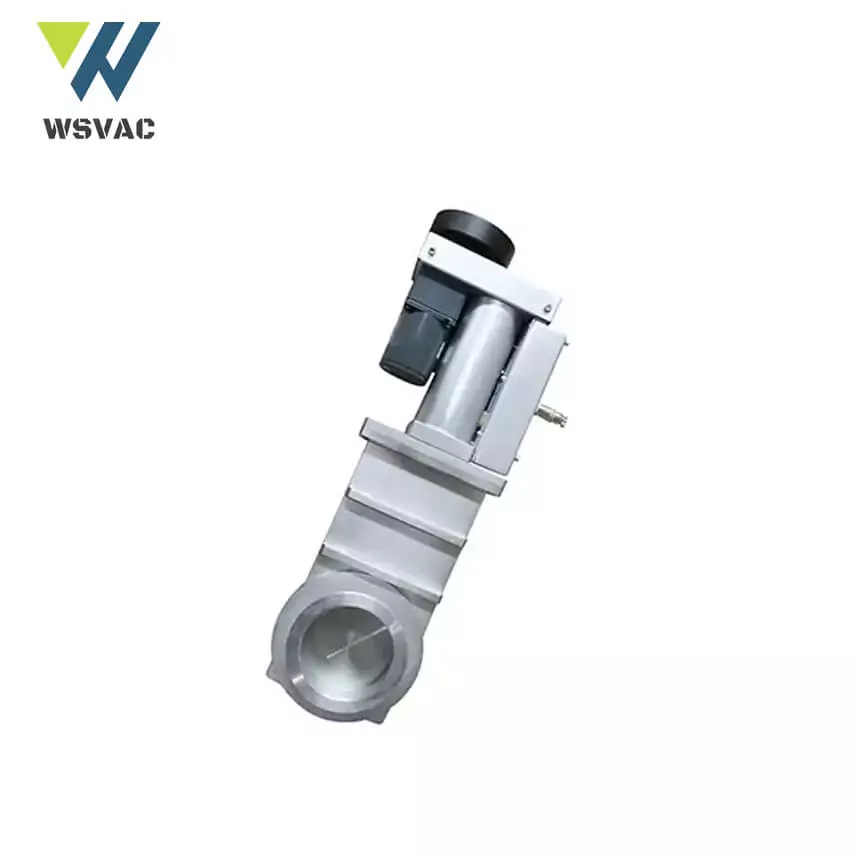

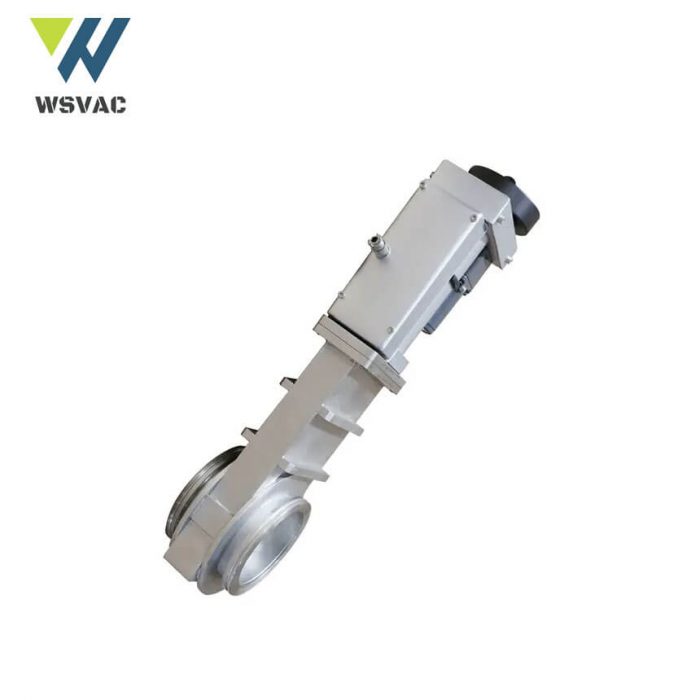

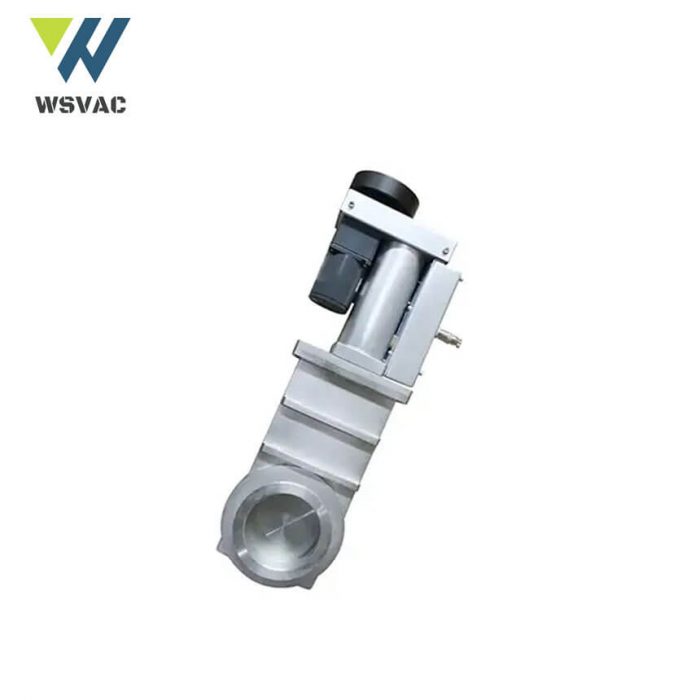

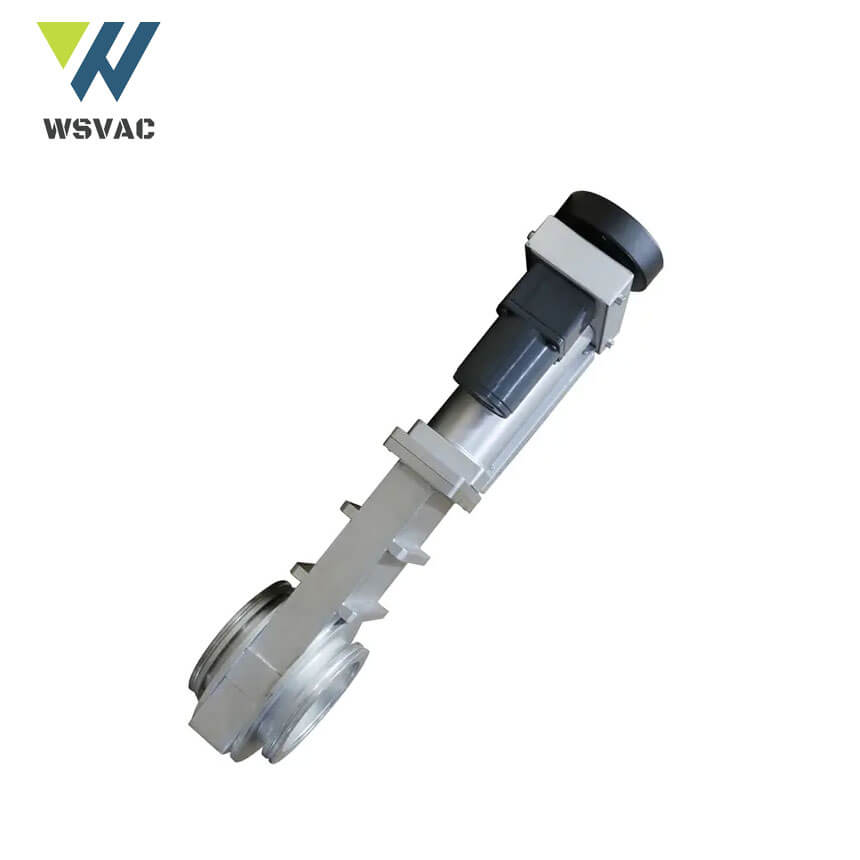

Ultra High Vacuum motor Driven Gate Valves
Features:
1. Two sealing options: bellow sealing and viton sealing.
2. The valve body is welded inside stainless steel with low leakage rate
3. The valve body adopts a rib structure, small size, light weight and excellent appearance.
4. Adopt double-guide-rail structure, smooth movement, monolithic construction inside the valve and well-distributed holding power.
Description
EVCCD Series Technical Specifications Of Ultra High Vacuum Electric Gate Valve
|
Model |
EVCCD-100B |
EVCCD-160B |
EVCCD-200B |
EVCCD-250B |
|
|
Pressure Range |
Pa |
1.3×10-7～1.2×105 |
|||
|
Inside Nominal Diameter |
mm |
100 |
150 |
200 |
250 |
|
Leak Rate |
Pa·L/s |
1.3×10-7 |
|||
| Different Pressure In Opening Direction |
Pa |
3000(arbitrary) |
|||
|
Connection Flange |
— |
CF、ISO-K、GB-LP、ISO-F |
|||
|
Service Life Until First Maintenance |
times |
10000 |
|||
|
Heating Temperature (Valve Body) |
℃ |
Closed≤120，opend≤150 |
|||
|
Supply Voltage |
V |
220±10% |
|||
|
Opening / Closing Time |
s |
≤50s |
|||
|
Position Indicator Of The Valve |
— |
The micro switch |
|||
|
Installation Orientation |
— |
any |
|||
|
Ambient Temperature |
℃ |
5~40 |
|||
Technical Parameters:
| Application Scope | 1×10^(-5)Pa~1.2×10^(5)Pa(Viton o-ring sealed)1×10^(-6)Pa~1.2×10^(5)Pa(Bellow seal) |
| Differential Pressure On The Gate | ≤3×10^(3)Pa any directions |
| Body And Seat Leakrate | 1.3×10^(-7)Pa.L.S^(-1) |
| Cycles Until First Service | 100,000 times |
| Bake-Out Temperature | open≤250℃; close≤150℃ |
| Installation Position | Any directions |
| Compressed Air (Only Supply To Pneumatic Valves) | DN63~200: 0.4-0.7MPa;DN250~400: 0.5~0.7MPa |
| Power Supply | Pneumatic valves: AC 220V 50HZ, 6W or DC 24V, 3W( can be customized)DN63~250 for AC 220V 50HZ, 25WOr AC 380V 50HZ, 25WDN320~400 is AC 220V 50HZ, 40W Or AC 380V 50HZ, 40W |
| Speed Of Opening Or Closing: | Pneumatic drive:DN63~DN250≤6s; DN320~DN400≤10sElectric drive:DN63~DN250≤50s; DN320~DN400≤60s |
| Valve Position Indication: | Manual drive: with start & stop position indicator switch (mechanical)Pneumatic drive: with start & stop position indicator switch (magnetic switch)Electric drive: with start & stop position indicator switch (micro switch) |
