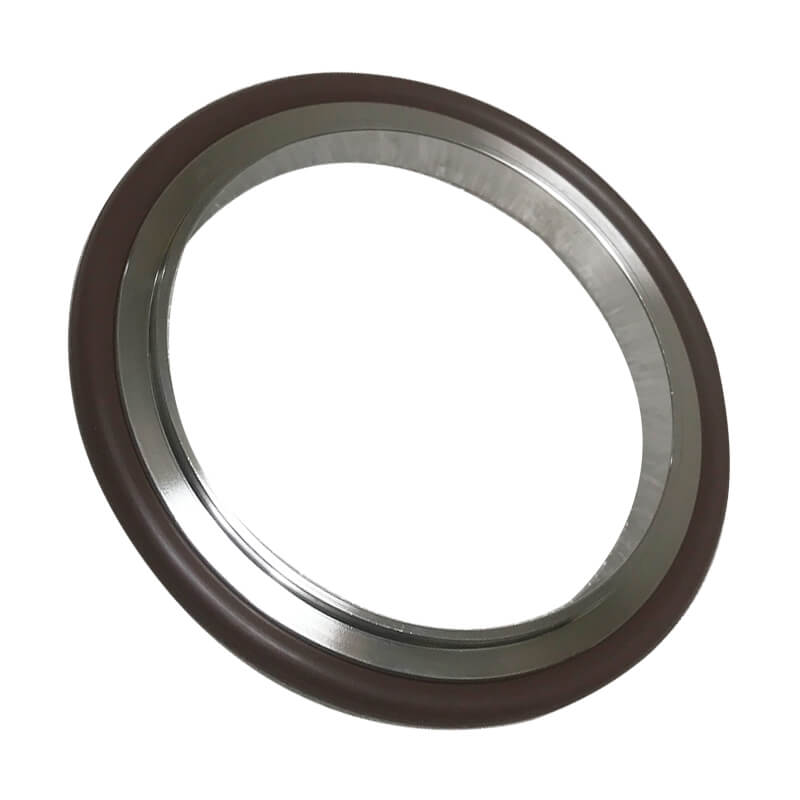

Description
| Model | Size |
A |
B |
C |
D |
Material | Order Number | |
|
C/R |
O’Ring |
|||||||
| ISO63CRVSE |
ISO63 |
68 |
70 |
8 |
3.9 |
304SS |
Viton |
C460 |
| ISO80CRVSE |
ISO80 |
81 |
82.6 |
8 |
3.9 |
304SS |
Viton |
C461 |
| ISO100CRVSE |
ISO100 |
100 |
102 |
8 |
3.9 |
304SS |
Viton |
C462 |
| ISO160CRVSE |
ISO160 |
148 |
153 |
8 |
3.9 |
304SS |
Viton |
C463 |
| ISO200CRVSE |
ISO200 |
210 |
213 |
8 |
3.9 |
304SS |
Viton |
C464 |
| ISO250CRVSE |
ISO250 |
257.5 |
261 |
8 |
3.9 |
304SS |
Viton |
C465 |
| ISO320CRVSE |
ISO320 |
312 |
318 |
12 |
5.6 |
304SS |
Viton |
C466 |
| ISO400CRVSE |
ISO400 |
394 |
400 |
12 |
5.6 |
304SS |
Viton |
C986 |
| ISO500CRVSE |
ISO500 |
494 |
501 |
12 |
5.6 |
304SS |
Viton |
C467 |
| ISO63CRVAE |
ISO63 |
68 |
70 |
8 |
3.9 |
Aluminum |
Viton |
C468 |
| ISO80CRVAE |
ISO80 |
81 |
82.6 |
8 |
3.9 |
Aluminum |
Viton |
C469 |
| ISO100CRVAE |
ISO100 |
100 |
102 |
8 |
3.9 |
Aluminum |
Viton |
C470 |
| ISO160CRVAE |
ISO160 |
148 |
153 |
8 |
3.9 |
Aluminum |
Viton |
C471 |
| ISO200CRVAE |
ISO200 |
210 |
213 |
8 |
3.9 |
Aluminum |
Viton |
C472 |
| ISO250CRVAE |
ISO250 |
257.5 |
261 |
8 |
3.9 |
Aluminum |
Viton |
C473 |
| ISO320CRVAE |
ISO320 |
312 |
318 |
12 |
5.6 |
Aluminum |
Viton |
C474 |
| Model | Size |
A |
B |
C |
D |
Material | Order Number | |
|
C/R |
O’Ring |
|||||||
| ISO63CRNSE |
ISO63 |
68 |
70 |
8 |
3.9 |
304SS |
NBR |
C475 |
| ISO80CRNSE |
ISO80 |
81 |
82.6 |
8 |
3.9 |
304SS |
NBR |
C476 |
| ISO100CRNSE |
ISO100 |
100 |
102 |
8 |
3.9 |
304SS |
NBR |
C477 |
| ISO160CRNSE |
ISO160 |
148 |
153 |
8 |
3.9 |
304SS |
NBR |
C478 |
| ISO200CRNSE |
ISO200 |
210 |
213 |
8 |
3.9 |
304SS |
NBR |
C479 |
| ISO250CRNSE |
ISO250 |
257.5 |
261 |
8 |
3.9 |
304SS |
NBR |
C480 |
| ISO320CRNSE |
ISO320 |
312 |
318 |
12 |
5.6 |
304SS |
NBR |
C481 |
| ISO400CRNSE |
ISO400 |
394 |
400 |
12 |
5.6 |
304SS |
NBR |
C482 |
| ISO63CRNAE |
ISO63 |
68 |
70 |
8 |
3.9 |
Aluminum |
NBR |
C483 |
| ISO80CRNAE |
ISO80 |
81 |
82.6 |
8 |
3.9 |
Aluminum |
NBR |
C484 |
| ISO100CRNAE |
ISO100 |
100 |
102 |
8 |
3.9 |
Aluminum |
NBR |
C485 |
| ISO160CRNAE |
ISO160 |
148 |
153 |
8 |
3.9 |
Aluminum |
NBR |
C486 |
| ISO200CRNAE |
ISO200 |
210 |
213 |
8 |
3.9 |
Aluminum |
NBR |
C487 |
| ISO250CRNAE |
ISO250 |
257.5 |
261 |
8 |
3.9 |
Aluminum |
NBR |
C488 |
| ISO320CRNAE |
ISO320 |
312 |
318 |
12 |
5.6 |
Aluminum |
NBR |
C489 |
| ISO400CRNAE |
ISO400 |
394 |
400 |
12 |
5.6 |
Aluminum |
NBR |
C490 |
